The belt filter cloth sometimes called press belt is an industrial piece of equipment used for solid/liquid separation, in particular is used in the dewatering of sludges in the chemical, food, minerals & mining  and wastewater industries.

Our filter press belts are very strong and abrasion resistant, they have high dimensional stability during machine load and their edges are reinforced. Fabric construction ensures good drainage of liquid and at the same time prevents the extrusion of the sludge cake through the fabric.

Our filtration felt belt have been used in for filtration of metal concentrates, industrial minerals and tailings,highly suitable for fine particle filtration, filter belt absolute freedom from folds, good cake separation and excellent dewatering behaviour (maximum width 4.5 m).To create an endless belt, filter fabrics are joined by the detachable stainless steel clipper seam ( 316) or the permanent woven seam, they can be individually used in most different areas of application on the following systems: Filter belts for belt filters, tower presses,  double-belt presses

There are two kinds of industrial press filter belts, Woven Filter Cloth  and Needle Non-woven Filter Belt :

* Woven Filter Mesh Belt
Synthetic monofilament of PP & PET, double layer
Smooth surface for cake release easily
High strength, low elongation
Max. width 460cm available

*Needle Non-Woven Filter Cloth Belt
It is made of double layer synthetic monofilament as the base fabric and needle-punched multiple layers of fibers, felt belts are pre-stretched to minimise shrinking and stretching.
Material have polyester, nylon, pps or aramid, the seamless overlap of the  non-woven filter  belt allows for a smooth transition at the scraper.

Woven cotton conveyor belt is used in corrugated cardboard box manufacturing industry, Papers are passes between two conveyor belts to make multiple ply corrugator paper.

Corrugator Belts can be joint through special wire hook fastener easily on site.

P-011: Ordinary type thickness 9mm corrugator belt.
P-012: Corrugator belt with reinforced aramid (Kevelar) inwoven adge for frequent(belt egde up to 350°C, high speed production demand).
P-013:Thickness 5mm woven belt(width range:500mm-1600mm.
P-014: Non-woven needle felt felt belt( Material Polyester/Aramid, Thickness 10mm4000g/m2； Width range：unlimited size).

Weight	Thickess	Coefficient  friction	Permeability	Heat-resistance	Speed	Width
7500 +/- 400 g/m²	9 +/- 0,3 mm, Perfect homogenous thickness	0.25	160 +/-15 m3	200°C	100- 300 m/min	1400mm to 3200mm

PTFE conveyor belts combine the non-stick surface and heat resistance of polytetr afluoroe thylene and with the strength and dimensional stability of fiberglass. Dimensionally stable from -73° to +260°C (-100° to +550°F),  belts are non-toxic, tasteless odorless, Precision Coating line industrial belts combine the non-stick surface and heat resistance.

Application: suitable for printing, the flat dryer of printing industry, and heat transfer conveyer belt,food processing press belts, Textile dryer belts, printing dryer belts, plastic bag sealing belt, sealing machine belts, Screen print dryers, lamination belts, Solar panel and photovoltaic lamination belts.

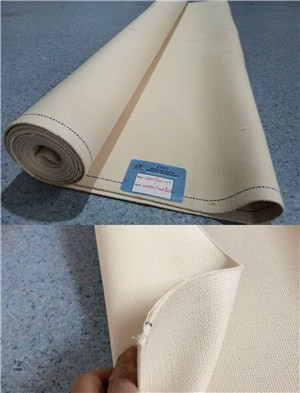

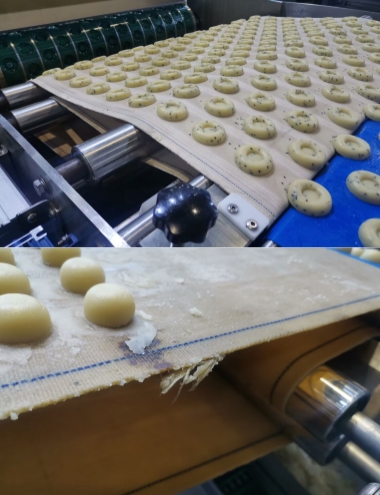

Cotton biscuit webbing has been widely used in production of biscuits through out the world.

Woven cotton belts are the rotary molder belts extracts the raw biscuits from the shaping roller, and the weave patterns permits the absorption of oily and grease from the dough,

cotton fabric belts are supplied open or endless with edge reinforcements.

Thicknesses ranging from 1.5mm through to 3.0mm

Biscuit cotton belt, monolayer thickness 1.5mm; Density: 1200g/M2, Maximum width 1.30m
( Usually used in biscuit finishing and scrap conveying), this type can be open.

Double-deck thickness: 2.0mm;  Density: 1600g/M2, Maximum width 1.80m
( Usually used in biscuit finishing)  Can be endless

Double-deck thickness: 3.0mm;  Density: 2000g/M2, Maximum width 1.60m
( Usually used in biscuit cooling)  can be endless.

Vacuum presses membranes is also called silicone membrane on wood industry for a broad range of vacuum forming of application Pressing of foil and veneer, furniture, production of wood laminations, and even in composite industries, silicone rubber sheet membranes Elastomer membranes no contact which on the pressed plastics do not trigger any discoloration.

Advantage:

-No contact discolouration on pressed parts
-Long-term flexibility
-High tear strength
-High elasticity (750%)

Color	Material	Width	Thickness	Hardness	Max. Temperature	Tensile Strength	Elongation at break
gray /translucent	Silicone	2600mm	3mm	50	220°C	8.5Mpa	75%

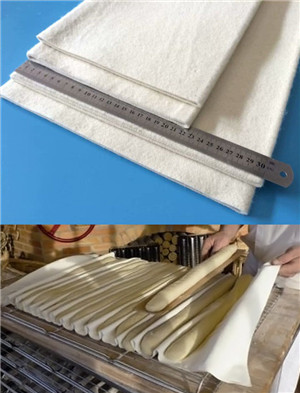

Bakeries Endless Wool Belt also called dough bakery endless belt which is suitable for bakery machine, dough moulder machine and other food industry machine.

We have four types of felt belts for bakeries industry:

1, Endless wool belt without splice,Endless woven and milled. 100% wool natural
    Thickness Approx. 3mm & 5mm

2, Endless wool/polyester felt can be requested for moulding belts with wet processing and dough processing non-stick,grease resistant,washable.

3, PVC felt belt,food felt PVC conveyor belt covered conveyor belts to suit  food industry applications,meet food bakery  handling requirements.

4, Open size wool belt: piece wool belt used as a cushion, oil-proof, non-slip, hygienic.

Silicon Conveyor Belts are used for food processing, packaging film bag, wood furniture doors and windows processing....

Silicon conveyor belts consist of a rubber coating which is applied to one or two layers of polyester. The advantages of silicon are obvious - it is resistant to many chemicals, greases and high temperature resistance, tear resistance, anti-adhesive effect.

Steel wiping felt is the sheet felt pad for for wiping purpose in soft or rigid metals as roll cold roll steel mills and other industries. Polyester fibres stiff felt is  remove oils, cutting fluids, burrs, and other contaminants from metal master rolls as it is being, straightened, or slit into coils. Industrial steel wiping felts are used in cold rooling mills, hot rolling mills, steel slitters, cushioning purpose as felt pads.

Silicone Conveyor Belts For Film Zipper Bag Making Machinery


Application Purpose of silicone conveyor belt: for high temperature elastic sealing  and cutting, and Film bag hot cutting machine, Zipper Bag Machinery plastic bag all kinds of bag making.

High-temperature resistant : Max.300 ℃ Degree Celsius.
Thickest: 2mm-6mm
Widest: 100mm-1200mm
Circumference: 200mm-3000mm
Color: White / Red
Fabric core reinforced,it can still be made endless.
Advantage: high temperature resistant, industrial application or food-grade, wear and tear resistant.

Food Pasta Steaming Conveyor Belt /Rice noodle steaming belt,Noodle Production Line steaming cloth belt /PTFE mesh  of conveyor belts that are used to steam pasta.

Food drying belts for industrial scale food drying which can take place on continuous moving conveyor belts.  Large ovens are used to carry uncooked pasta through high volume industrial steaming ovens. This allows steam to circulate around the pasta whilst being supported by the belt.

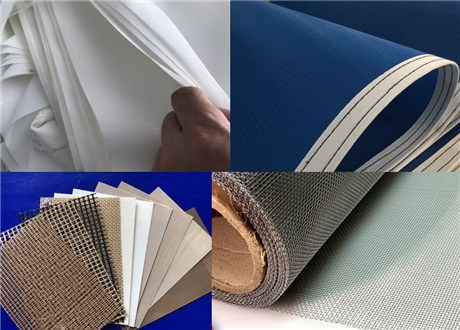

We are offering:
Polyester mesh cloth
Filter cloth Belt filter
Food pho noodle conveyor belt

PTFE mesh conveyor belt/PTFE glass cloth /Wire cloth belts

Rotating Unions and Rotary Joints and transfer fluids like water, air, coolant, steam, and other forms of media from static to 360° continuous rotating parts.

Offers (single flow) passage rotary joints, two (dual flow) passage rotary unions, Sizes range from 1/8″ to 12″ nominal pipe sizes in single and dual flow designs including multi-port hydraulic models .

Swivel Union Materials are cast iron, cast steel, brass, stainless steel. Rotary unions are used in various sectors such as paper Machine Dryer, packaging,  textile equipment, rubber & plastic manufacturing machinery, steel continuous casting machines and paper machine calender.

According to the numerous applications, different requirements are placed on a Rotary Union.

Corrugated Metal Hoses is pressure tight and ideal for vibration, continuous flexing and when properly designed and installed, for thermal expansion and contraction. Size:1/2", 3/4" 1", 2"... Metal hose match for rotary union/rotary joint, can customized any length.

Battery pasting belt is the endless felt belt for battery machine industry,  seamless pasting belt for the battery and the accumulator production used in the pasting process of the lead plates in the battery manufacturing process, Our endless battery pasting belts are made of a special chemical treatment cotton and synthetic fibers being battery pasting truly endless belt good for lead acid batteries plate battery.  Our endless battery belts surface the same strength in all the belt’s sections and no weak points,surface with high abrasion resistance will be long life-time, we can made any size upon customer's request.

We also have another type of traditional splice cotton belt for battery plate:

Lead-acid battery grids belts and Lead powder conveyor belt
Features: seamless or steel hook joint
Material: Cotton
Temperature resistance up to 380°C
Thickness: 3mm to 6mm
Width: 10mm to 1000mm
Tensile strength: n/mm 380

The advantages of our battery pasting belts are:
* Longer duration of the belt
* Surface with high abrasion resistance
* Constant thickness
* Truly endless surface
* Dimensions upon customer’s request



Common size: 2050*380mm,1770*400mm, 2540*330mm,3080*380mm

Breaking strength ：N/mm at 1% elong.

Estimated production is of about 8000000 to1,000,000 frequency of replacement for each belt can be once a week or every second week (in function of production capacity).

Battery Pasting Belt is the felt belt for battery industry, seamless pasting belt for the battery and the accumulator production, made of cotton and synthetic  fibers being battery pasting truly endless belt.  Our endless battery belts surface the same strength in all the belt’s sections and no weak points,surface with high abrasion resistance will be long life-time, we can made any size upon customer's request.

Corrugated Cardboard  Belts are used on corrugated board industry, providing to carry the papers which using in corrugator paper production machines.

We offering woven corrugated conveyor belts and needle felt belt, and various of corrugated board industry accessories, welcome to inquiry.
